Cable Cleat
CMP
Isolation / Separation Pad, C-Clamp, Wire Mesh Cable Tray / Basket Clips

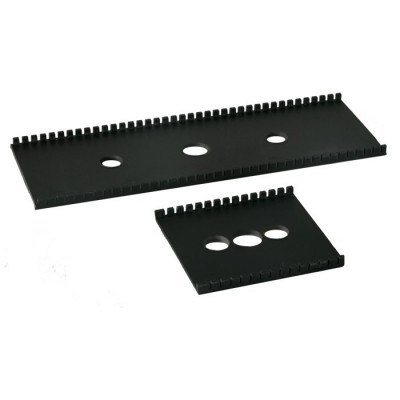

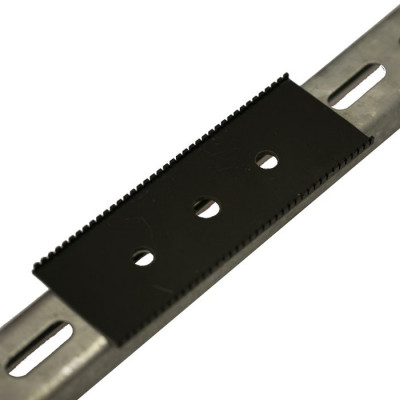

Isolation / Separation Pad
The CMP cable cleat isolation / separation pad is designed to prevent corrosion between two dissimilar metals, by ensuring that the cable cleat avoids direct contact with the supporting structure. The pad is manufactured from a Low Smoke & Fume (LSF) material as standard, with predefined knock-out positions. These knock-out positions allow the isolation pad to be used with any CMP Products cable cleat. Once the knock-outs have simply been punched through to suit the bolt fixing centres of the cable cleat, the isolation pad is then cut to suit the cable cleat base size. Once installed the isolation pad will help to prevent galvanic corrosion should the material of the cable management system be different from that of the cable cleat.
C-Clamp
The CMP C-clamp is designed to be used with plain or continuous ladder rungs, struts, or channel mounting frame which have no mounting slots or holes provided, to allow for ease of cable cleat mounting. The CMP C-Clamp is manufactured from 316L Stainless Steel, and is supplied in various sizes to suit all CMP cable cleats as well as a wide variety of ladder rungs, struts and channel mounting frames. The design incorporates one M12 and two M10 clearance holes to allow for the flexibility of optional fixing positions to be used. The CMP C-clamps have been utilised and extensively tested during short circuit conditions as specified in IEC 61914 ‘cable cleats for electrical installations’.

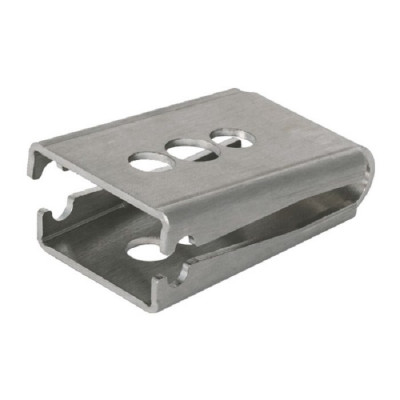

Wire Mesh Cable Tray / Basket Clips
The CMP Wire Mesh Cable Tray / Basket Clips are manufactured from 316L Stainless Steel and are designed to allow cable cleats to be safely installed onto wire mesh cable tray and / or basket. The CMP basket clip has one M12 and two M10 clearance holes, and slides over the mesh wires of the tray or basket to provide a secure fixing surface for the cable cleat to be attached to. The CMP wire mesh cable tray / basket clips have been utilised and tested during short circuit conditions as specified in IEC 61914 ‘cable cleats for electrical installations’.
