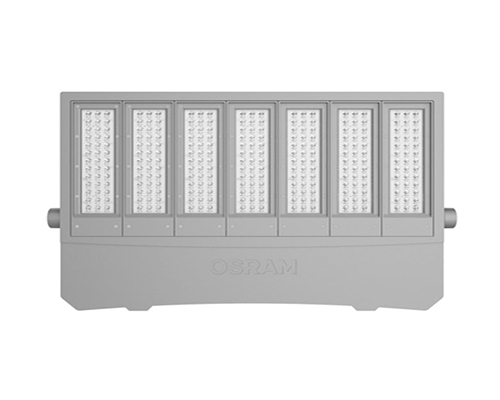

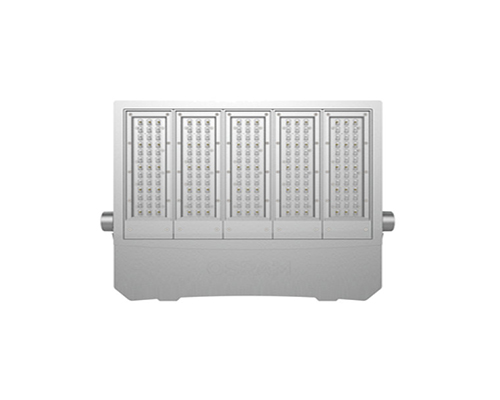

SIMPLITZ LED Flood Light series, rated for outdoor use, the luminaires are designed to replace the traditional 100W, 250W and 400W HID flood lights with excellent energy savings. Special optical designs in slim, rugged aluminium alloy housing made to fit many forward lighting applications such as billboard illumination, flood lighting and façade lighting. Advertisers and store owners can rest assured that their important company messages will shine brightly through the night, all year round. The durable construction and remarkably long service life of SIMPLITZ offers big savings in maintenance costs, particularly for hard-to-reach installation locations, such as building facades and rooftop billboards. The energy efficient SIMPLITZ LED lighting with specially designed optics promises that the target area will be blanketed in smooth consistent light while the customer benefits from cost savings and a small carbon footprint. It is a true traditional 100W, 250W and 400W HID flood light replacement, with extension of power range to 280W, which can replace even as high as 600W HID flood light.
Features
1. special designed optics for various applications; tailored light distribution with asymmetric optic for billboard lighting; symmetric optics for flood lighting and façade and building illumination
2. high efficiency options; up to 130lm/W
3. undergone rigorous testing to ensure dust and water ingress protection
4. lightest LED flood light in its class, and weight comparable to traditional flood lights
5. mounting yoke with lockable aiming marks at 10° intervals for accurate light projection
6. energy saving alternative to traditional flood lights with matching brightness level and more
7. long service life saving maintenance cost, particularly good for difficult to access locations such as façade and roof top billboards
8. built-in OSRAM brand driver provides consistent service and quality
9. reserved anti-fall chain mounting holes, for providing more safety
10. highly thermal efficient pin fin heat sink design, dust proof
11. special coating material enables passed 168hrs salty mist test can fulfil most of outdoor usage
12. reserved Dimming Cable interface, to achieve better energy-saving
Application Areas
1. Illumination of advertising panels
2. floodlight
3. facade and building illuminations
4. area lighting
